The Four-Directional Shuttle Vehicle is a highly automated logistics equipment that revolutionizes traditional warehousing and material handling operations. Here's an introduction to this innovative technology in English:
Four-Directional Shuttle Vehicle: An Overview

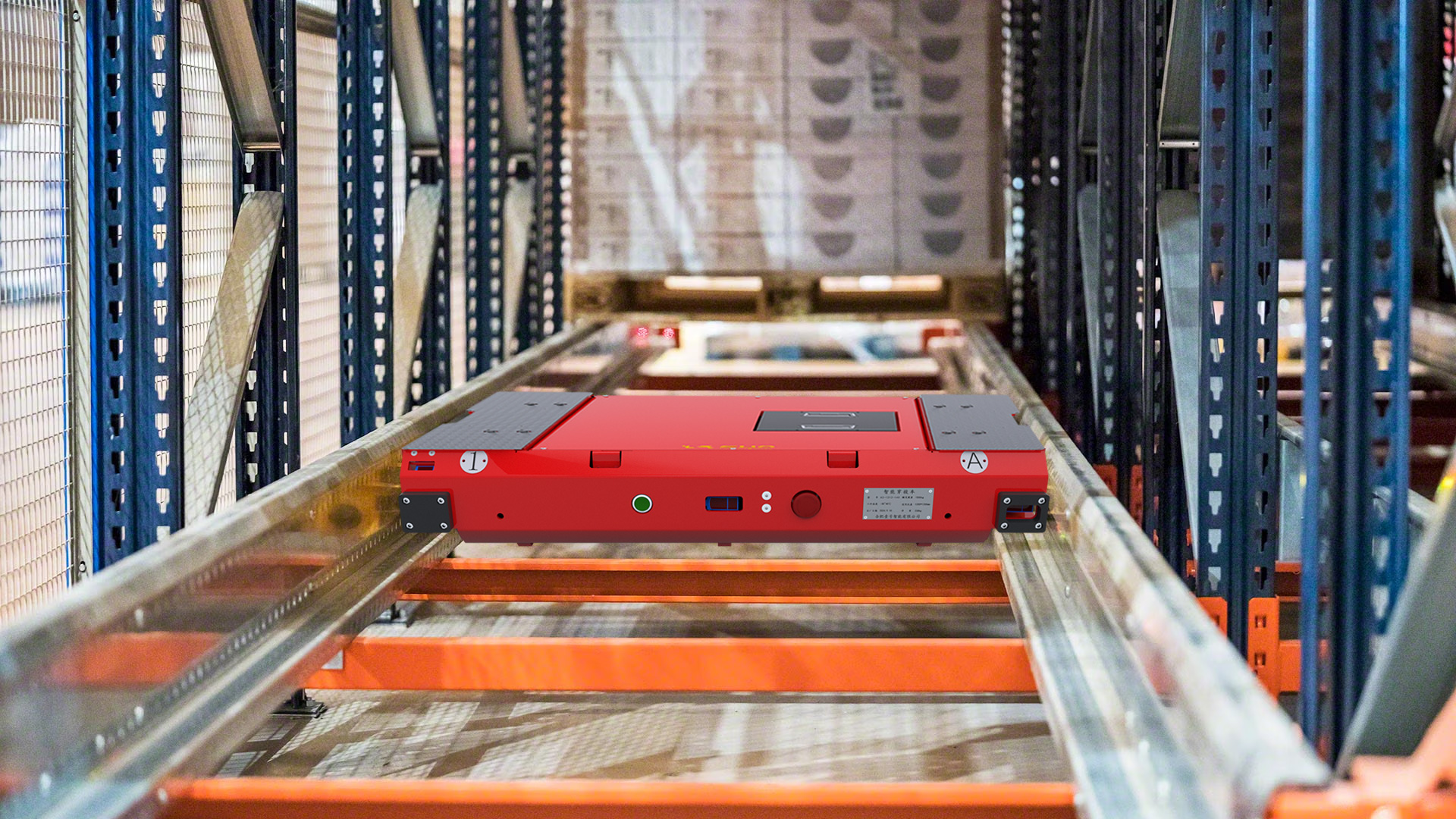

The Four-Directional Shuttle Vehicle, often abbreviated as 4-way shuttle, is a storage robot designed to traverse in four directions (forward, backward, left, and right) within a warehouse environment. Unlike traditional two-directional shuttles that can only move forward and backward, the 4-way shuttle offers unparalleled flexibility and efficiency.
Key Features and Advantages
-
High Automation: The 4-way shuttle integrates multiple functions such as automatic stacking, unmanned guidance, and automated transportation into a single unit. It can automatically switch lanes, change levels, and perform storage and retrieval operations with speed, precision, and simplicity.
-

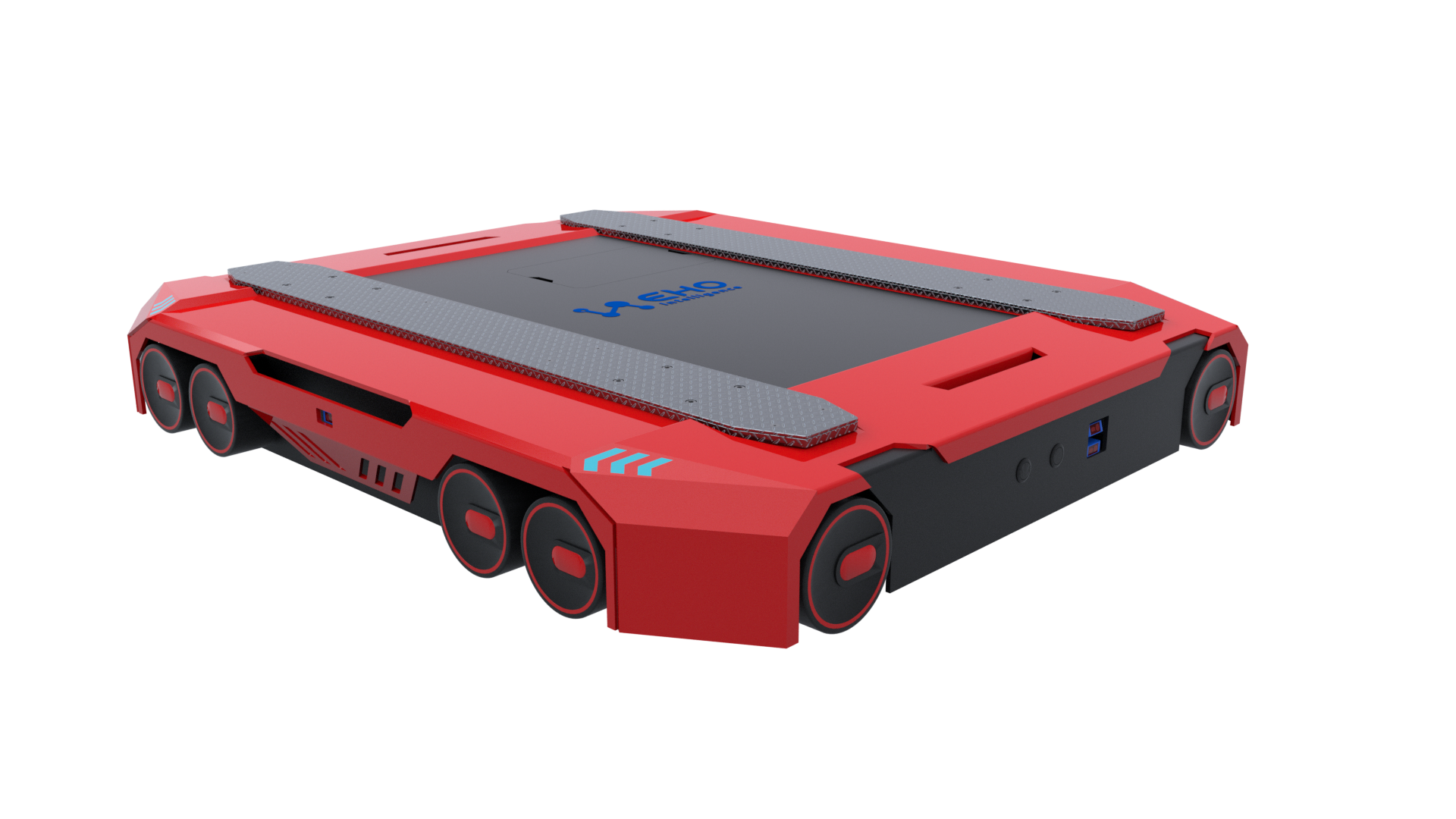

Flexibility: The shuttle achieves directional changes through a dual-wheel system and transitions between levels using lifting mechanisms. This design allows it to operate flexibly, making it ideal for systems with low-frequency inventory turnover.
-
Efficiency: Empty shuttles can reach speeds of over 4 meters per second, while loaded shuttles typically travel at 3 meters per second. With an acceleration rate of 0.5 meters per second squared, the 4-way shuttle significantly enhances warehouse operational efficiency.
-
Precision Positioning: Positioning is achieved using barcode scanning and endpoint switches, requiring an accuracy of within 3 millimeters to ensure precise storage and retrieval of goods.
Types and Structures
Based on the type of unit it handles, the 4-way shuttle is primarily classified into two types: the box-type shuttle and the pallet-type shuttle. Both types share common characteristics such as racks, tracks, positioning systems, communication modules, power supplies, and maintenance requirements.
Working Principle
The operation of the 4-way shuttle involves four key processes: straight-line and directional changes, traveling within sub-channels, traveling within main channels, and pallet lifting. Real-time scanning of positioning codes located below and at an angle helps the shuttle achieve precise positioning during travel. The lifting mechanism of the pallet completes the picking and placing of goods.
Applications
The Four-Directional Shuttle Vehicle finds application in various sectors requiring high-efficiency and flexible logistics transportation, including:
- E-commerce Fulfillment: In e-commerce warehouses, the 4-way shuttle enhances picking and packing efficiency through rapid and flexible movement.
- Medical Supplies Management: The healthcare system demands high mobility and inventory management precision, which the 4-way shuttle effectively fulfills, reducing human errors.
- Automotive Parts Logistics: The automotive industry benefits from precise control and operation programmed into the 4-way shuttle, improving logistics efficiency and quality.
- Cold Chain Logistics: In cold chain systems, especially those operating at -18°C and below, the 4-way shuttle significantly increases space utilization and improves the working environment in operational areas.
Maintenance and Troubleshooting
Due to its technical complexity, maintaining and troubleshooting the 4-way shuttle can be challenging. Specialized technicians are required for repairs and fault diagnosis. Additionally, the processing and installation accuracy of racks and tracks are crucial, contributing to higher manufacturing and installation costs.
In summary, the Four-Directional Shuttle Vehicle stands as a pioneering logistics equipment that holds immense potential and a promising future in the warehousing and logistics industry.
